Products Description

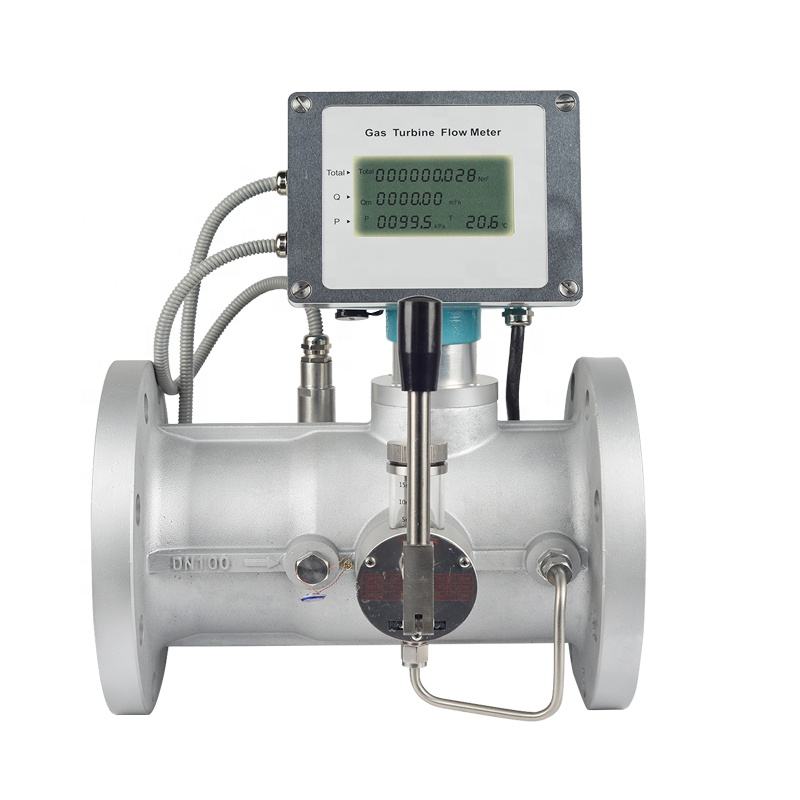

High Accuracy LPG gas turbine flowmeter

LWQZ gas turbine flowmeter is designed and produced for the measurement and control of various gases. It can display instantaneous flow and cumulative flow at the same time, It can automatically compensate for temperature, pressure and compression factor at standard condition (Pb=101.325kPa，Tb=293.15K). It is widely used in gas metering of petroleum, chemical, power, metallurgy, industrial boilers and other industrial industries and urban natural gas, gas regulator stations and gas trade metering.

Product features:

1. A 3.6V lithium battery can be connected to work for more than 3 years, and has a battery undervoltage alarm function.

2. The measured data can be stored in real time, and the data will not be lost when the power is off, so the measurement data can be saved permanently.

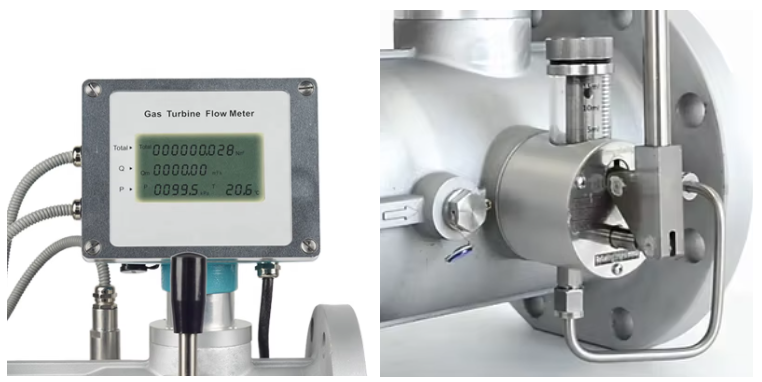

3. With full-view on-site display, the square head can rotate arbitrarily within 300o, and has a password function to prevent parameters from being modified.

4. The pressure transmitter is adopt digit type, which make the accuracy more higher.

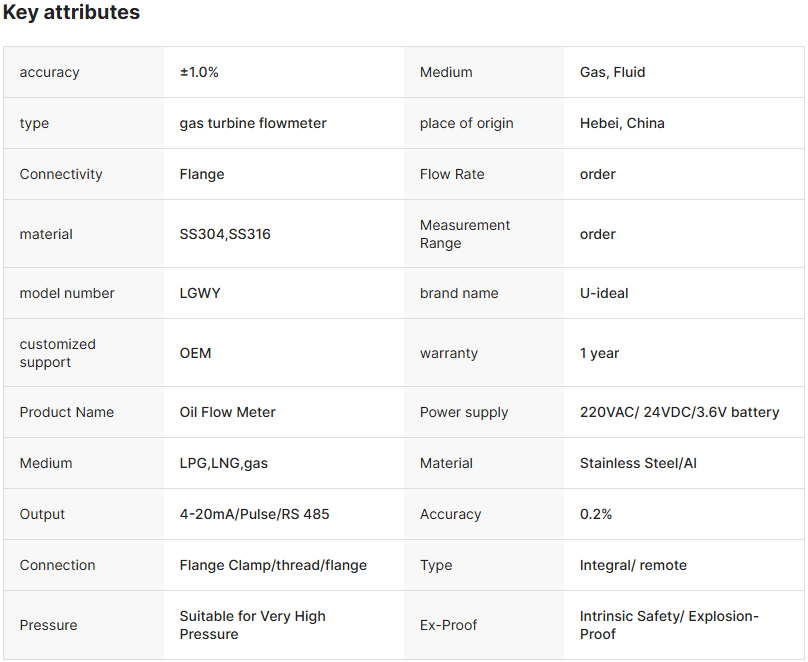

Product Paramenters

Diameter	25～300mm
Accuracy	±1.5%R、±1.0%R
Material	SS304; SS316L；aluminium
Working pressure	1.6MPa~6.3MPa Max Customize to 42MPa
Working temperature	-20℃～+80℃
Ambient	Temperature: -10°C to +55°C Pressure: 86 to 106 KPa Relative Humidity: 5% to 90%
Power Supply	Sensor: +12V DC (Optional: +24V DC) Transmitter: +24V DC Field Display Type B: Integral 3.2 V Lithium Battery Field Display Type C: +24V DC
Output signal	pulse / 4~20mA RS485, MODBUS protocol / Hart
Explosion-proof level	Exd (ia) ⅡC T6Gb
Transmitter and Sensor protection	IP65 / IP67

Company introduction

Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines. Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.

Our products range:

1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.

FAQ

1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Central America(2.00%),Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor
4. why should you buy from us not from other suppliers?
20 years export experience.
We are group company with Tianjin U-ideal Instrument Co., Ltd.
More than 20years for products Research and development.
5000m2 factory, high-precision machines.
Level gauge, flowmeter and pressure sensor have top quality
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

High Quality LPG Gas Turbine Flowmeter with Temperature Pressure Compensation Turbine Flow Meter
