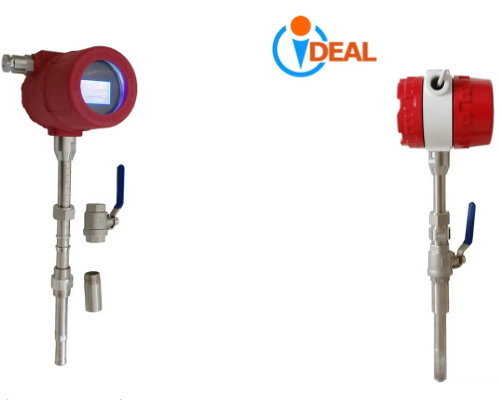

High Accurrcy Low Price Thermal Mass Flowmeter Insertion Oxygen CO2 Thermal Mass Gas Flow Meter

Measuring Medium	Various gases (Except the acetylene)
Pipe Size	DN10～DN4000mm
Velocity	0.1～100 Nm/s
Accuracy	±1～2.5%
Working Temperature	Sensor: -40℃～+220℃ Transmitter: -20℃～+45℃
Working Pressure	Insertion Sensor: medium pressure≤ 1.6MPa Flanged Sensor: medium pressure≤ 1.6MPa Special pressure please contactus

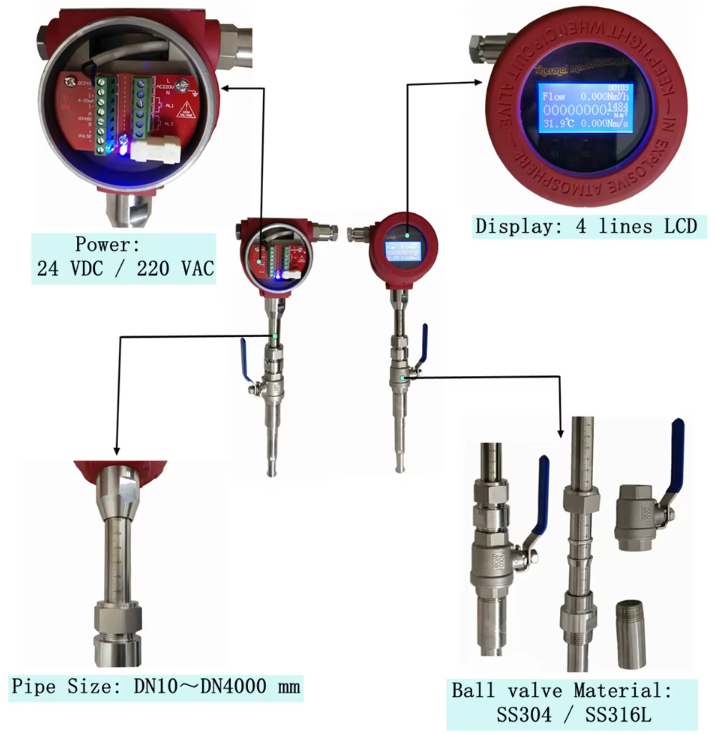

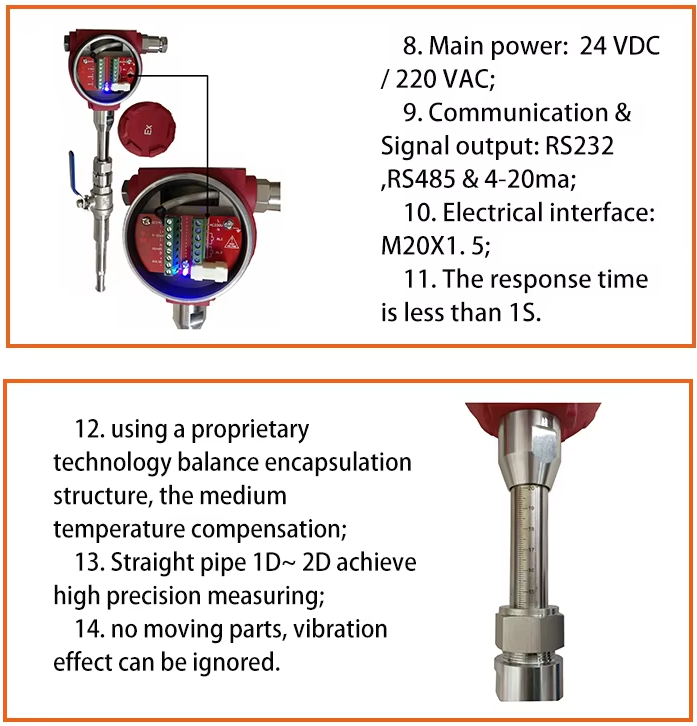

Power Supply	Compact type: 24VDC or 220VAC, Power consumption ≤18W Remote type: 220VAC, Power consumption ≤19W
Response Time	1s
Output	4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse, RS485 (optoelectronic isolation) and HART
Alarm Output	1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC

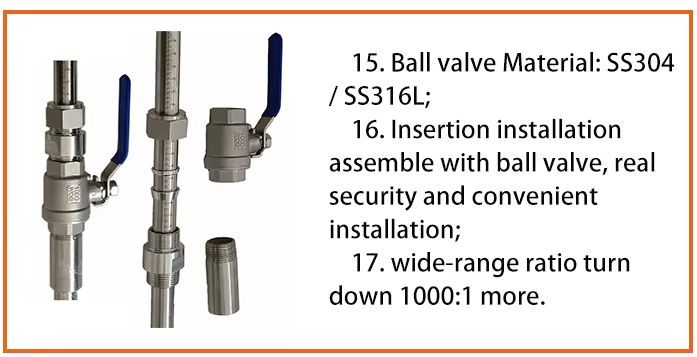

Sensor Type	Standard Insertion, Hot-tapped Insertion and Flanged
Construction	Compact and Remote
Pipe Material	Carbon steel, stainless steel, plastic, etc

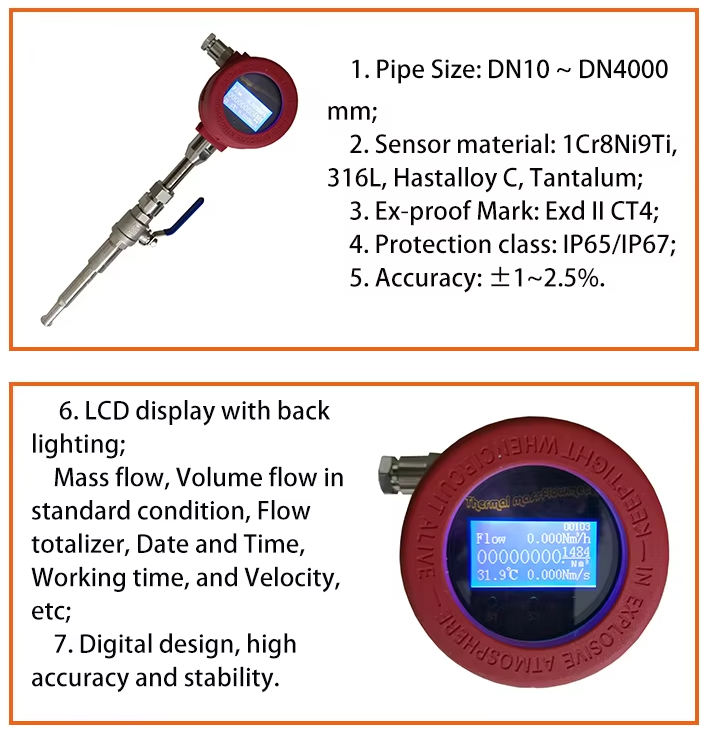

Display	4 lines LCD Mass flow, Volume flow in standard condition, Flow totalizer, Date and Time, Working time, and Velocity, etc.
Protection Class	IP65
Sensor Housing Material	Stainless steel (316)

1.0% Precision SS316L inserted mode Thermal Gas Mass Flow Meter

Thermal gas mass flow meter is designed on the basis of thermal dispersion, and adopts method ofconstant differential temperature to measuring gas flow. lt has advantages of small size, easy installation,high reliability and high accuracy, etc.

The meter contains two platinum resistance temperature sensors. The thermal principle operates bymonitoring the cooling effect of a gas stream as it passes over a heated sensor. Gas flowing through thesensing section passes over two sensors one of which is used conventionally as a temperature sensor,whilst the other is used as a heater.The temperature sensor monitors the actual process values whilst theheater is maintained at a constant differential temperature above this by varying the power consumed bythe sensor. The greater the gas velocity, the greater the cooling effect and power required to maintain thedifferential temperature.The measured heater power is therefore a measure of the gas mass flow rate.

Main Features:

1、Different gas coefficient arbitrarily set.

2、Show multiple sets of values.

3、Output analog calibration.

4、Multi-point non-linearcurve correction.

5、wide range ratio measurement 50:1/ 100:1 /max1000:1.

6、Large diameter small flow accurate measurement.

7、On-site instrument can be set.

8、Close to zero pressure loss of the closed sensor.

9、Straight pipe requirements smaller, 1D-2D canachieve high-precision measurement.

10、Measured value and pressure has nothing to do,the real mass flow detection.

11、Expert algorithm to achieve high precision and stability of the instrument less than one second response time.

12、LCD display, with Multiple display interface.

Product Paramenters
